产品简介

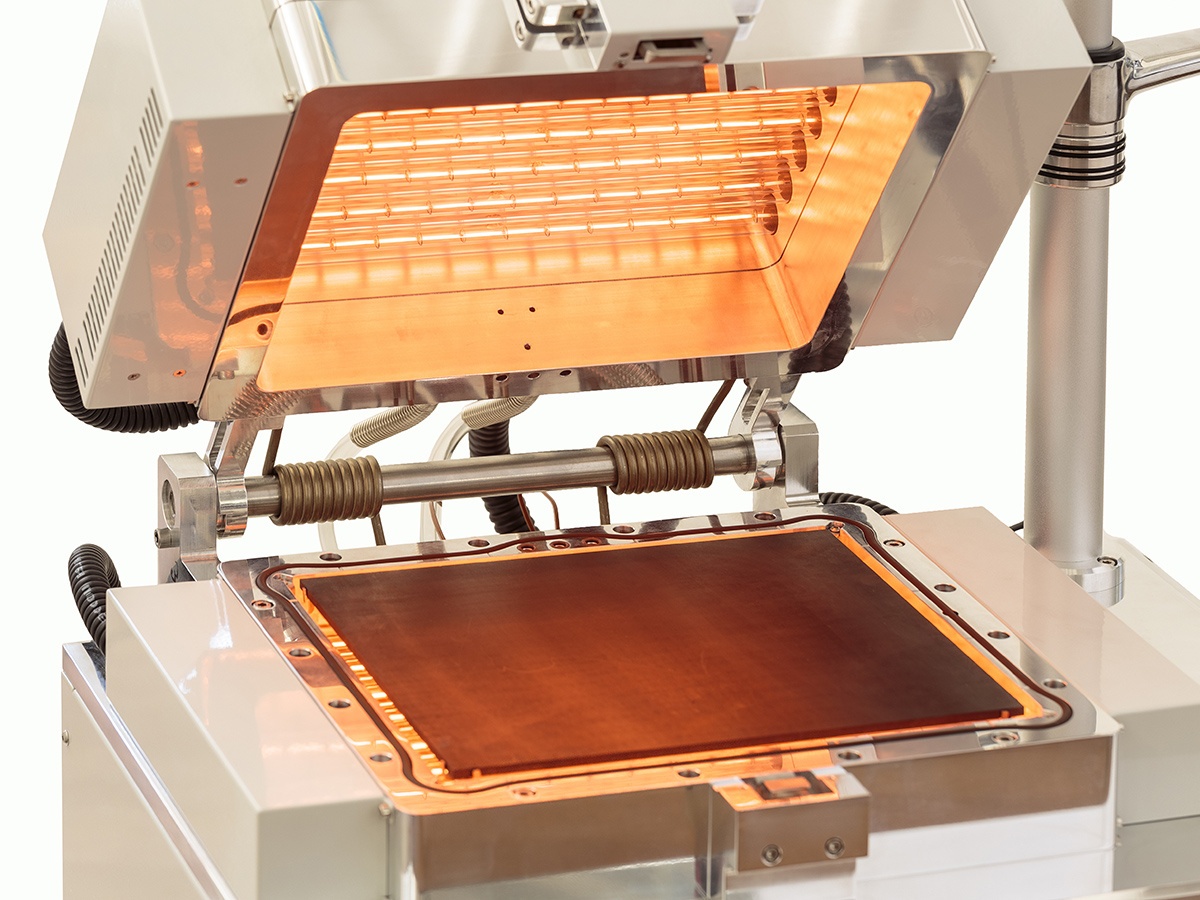

真空回流焊：

Process environment	nitrogen， inert gas， formic acid， forming gas
Maximum temperature	450°C
Heating area	420 x 420 mm
Heating plate	removable: graphite， aluminum， etc.
Clearance above heating plate	60 mm
Heat up / cool down ramp	250°C/min
Control deviation	+/- 0.5°C
Heating elements	16x infrared heating lamps in two crossed rows
Heating control	individual/adjustable on every heating lamp
Cooling of heating plate	nitrogen flow
Temperature measurement	up to 4x thermocouples K-Type freely positional
Pressure measurement	full range over two gauges
Maximum vacuum	1x10-2 mbar (5x10-6 mbar with turbo pump)
Formic acid bubbler	40 ml container in front panel with auto refill
Cooling of chamber body	water/ethylene glycol mixture
Lid viewing port	80 mm with shutter
Display	7" LCD with touch screen
PC Software	process logging， recipe transfer， etc.
User interface	remote control over relay I/Os
Dimensions	see layout
Weight	280 kg
Power supply	3 phase， country specific

**客户：

应用：

在真空和惰性气体中加热、散热器上的功率半导体、倒装芯片回流焊、凸点熔化、高强度LED连接、密封封装密封、光伏电池组件、模具连接、印刷铜膜烧结、混合电路组件、扁平封装封装、微机电系统和光电器件封装，汽车传感器、高能电池等。
